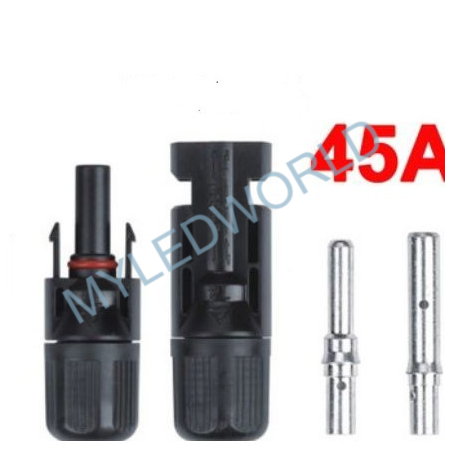

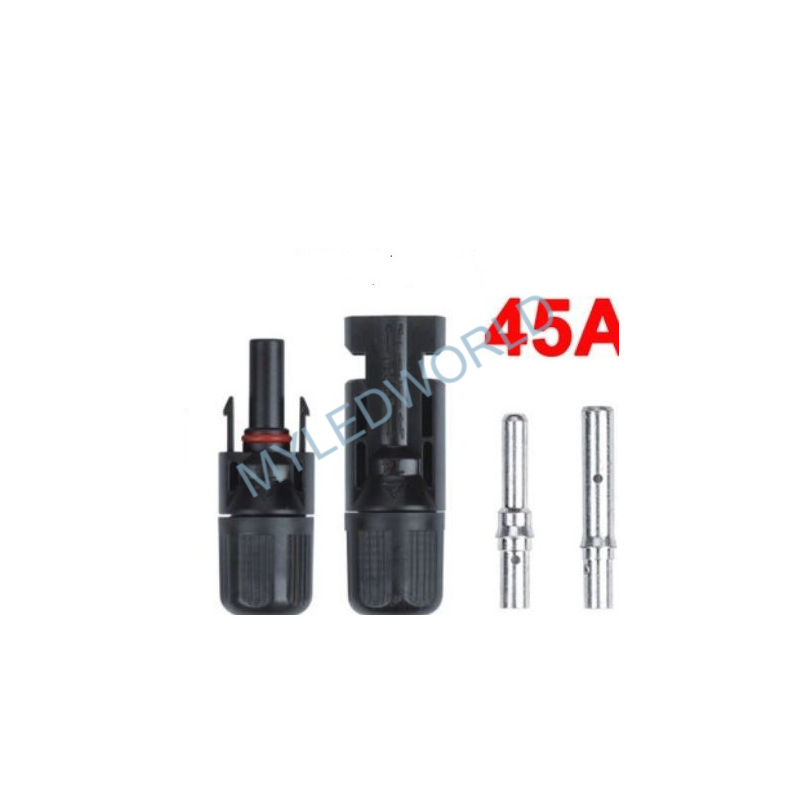

MC4 45A Solar Panel connector
RM4.00
No tax
MC4 45A inner contact type solar panel connector photovoltaic solar connector waterproof kit IP67
we supply of solar panel waterproof connectors kit
Rating :
1. inner contacts pair
2. MC4 45A connector pair
Technical Data of MC4 solar cable connector:
Rated current : 30A 45A 60A 80A of MC4 solar cable connector
Degree of protection: IP2*/IP67
Retaed voltage: 1000V DC of MC4 solar cable connector
Flame class : UL94-V0
Test voltage:6000V(50Hz,1min) of MC4 solar cable connector
Safety class: II of MC4 solar cable connector
Overvoltage category:CATIII of MC4 solar cable connector
Suitable class: OD4.5-7.0(2.5-6.0mm²)
Contact resistance of plug connector: 1.0mΩ
Insertion force/withdrawal force: ≤50N/≥50N
Contact material: Copper,silver Plated
Connecting System: Crimp connection
Insulation material : PPO of MC4 solar cable connector
Temperature range: -40~+125
